Electron Capture Loci

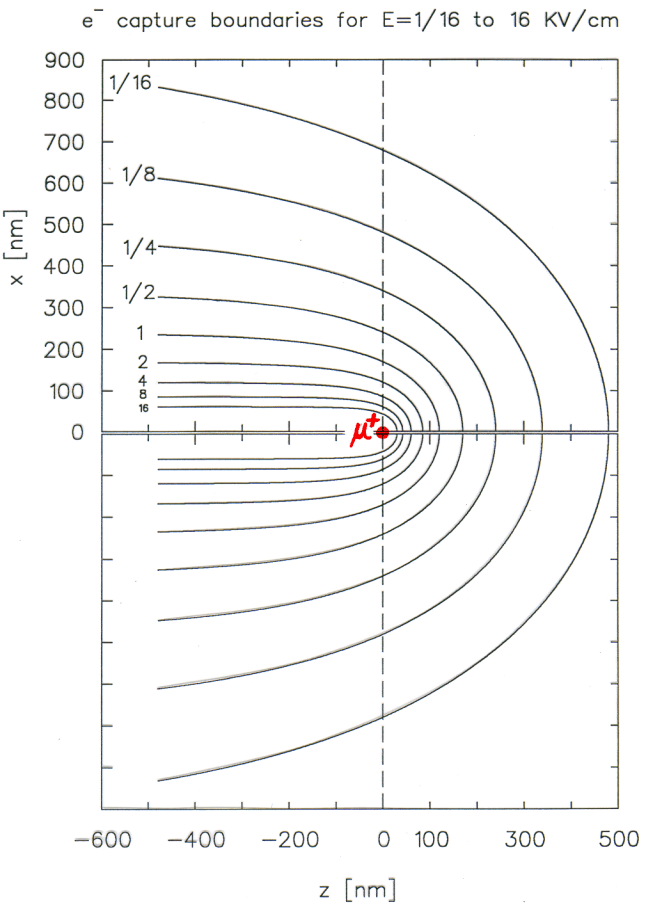

This figure shows a cross-sectional view of the spatial regions within which a radiolysis electron will be captured by a positive muon (due to its Coulomb attraction) for different magnitides of electric field strength Eext applied along the z axis. Outside that boundary the electron will be pulled away by Eext.

The volume of the capture region to the right of the muon (bounded by the z = 0 plane) is proportional to E-3/2.

The calculation assumes viscous flow - i.e. the electron never accumulates any momentum, because it is constantly losing it through collision with the medium; thus at any instant the electron moves in the opposite direction from the vector sum of the electric field Eµ due to the muon and the applied Eext. In some materials where free electrons have very long mean free paths, this assumption may be invalid; in such cases one must calculate electron trajectories including accumulated inertia - a much more difficult job.




Author: JHB.     Figure created ~1994.     See TRIUMF Expt 693,775.
Prepared by Jess H. Brewer
